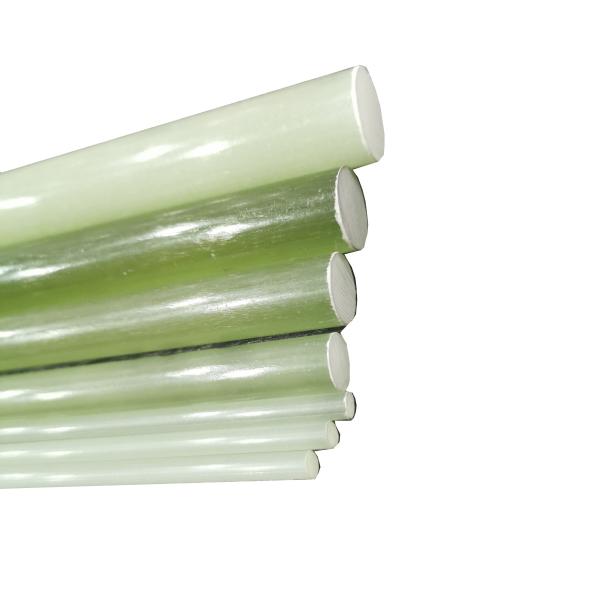

High Durability Epoxy Fiberglass Rod Tailored to Your Length
Requirements
Product Description of High Durability Epoxy Fiberglass Rod
Tailored to Your Length Requirements:
Insulator Fittings are custom designed from rubber and fiberglass
rods, providing high heat and impact resistance, as well as
superior durability. Manufactured to meet customer specifications,
these insulator connectors can be produced to any length, and at
any weight. Whether you need a light-weight solution for a large
area or a heavy-duty solution for a small space, Insulator Fittings
are the ideal choice for your insulation needs.
Features of High Durability Epoxy Fiberglass Rod Tailored to Your
Length Requirements:
- Insulator Fittings: Insulating Joints, Insulation Accessories
- Dimensions: 4mm-130mm
- Length: Customized
- Shape: Round/ Square/ Rectangle
- Temperature Range: -40℃ To +120℃
- Application: Composite Insulator/fuse Cut Out
Technical Parameters of High Durability Epoxy Fiberglass Rod
Tailored to Your Length Requirements:
| No. | Technical specification | Unit | value |
| 1 | Density(20℃±2℃) | g/cm3 | ≥2.2 |
| 2 | Water absorption rate (20℃±2℃,24h) | % | ≤0.05 |
| 3 | Tensile strength | Mpa | ≥1200 |
| 4 | Bending strength | Mpa | ≥960 |
| 5 | Dye penetrated test | Min | ≥15 |
| 6 | Water diffusion test (1%NaCl, 100h 12kv/1min) | mA | ≤0.1 |
| 7 | Shearing strength along laminas | Mpa | ≥50 |
| 8 | Volume resistivity (140℃,96h) | Ω.M | ≥1010 |
| 9 | DC withstand voltage (10mm) | Kv | ≥50 |
| 10 | Lighting impulsed withstand voltage (100kv,10mm) | Times | ≥5 |
| 11 | Bending strength at heating conditions | Mpa/150℃ | ≥350 |
| 12 | Torsion strength | Mpa | ≥800 |
| 13 | Stress corrosion (1mol/1HNO3,at 67%stress) | h | 96 |
Packing and Shipping:
Packaging and Shipping Insulator Fittings
Insulator Fittings will be packaged and shipped in either cardboard
boxes or custom-designed wooden crates. Cardboard boxes will be
used when shipping smaller quantities, while wooden crates will be
used when shipping larger quantities.
Each box or crate used to package and ship Insulator Fittings will
be clearly labeled with the product name, quantity, and any other
information that may be required. The boxes and crates will be
securely sealed in order to ensure the safe delivery of the
Insulator Fittings.
Insulator Fittings will be shipped using a reliable shipping
carrier with tracking information provided. The shipping carrier
will be selected based on the quantity of Insulator Fittings being
shipped, the destination, and the urgency of the delivery.
