1. Features and Application of customized epoxy fiberglass rod for
polymer insulator fuse cut out surge arrester fiberglass pole:

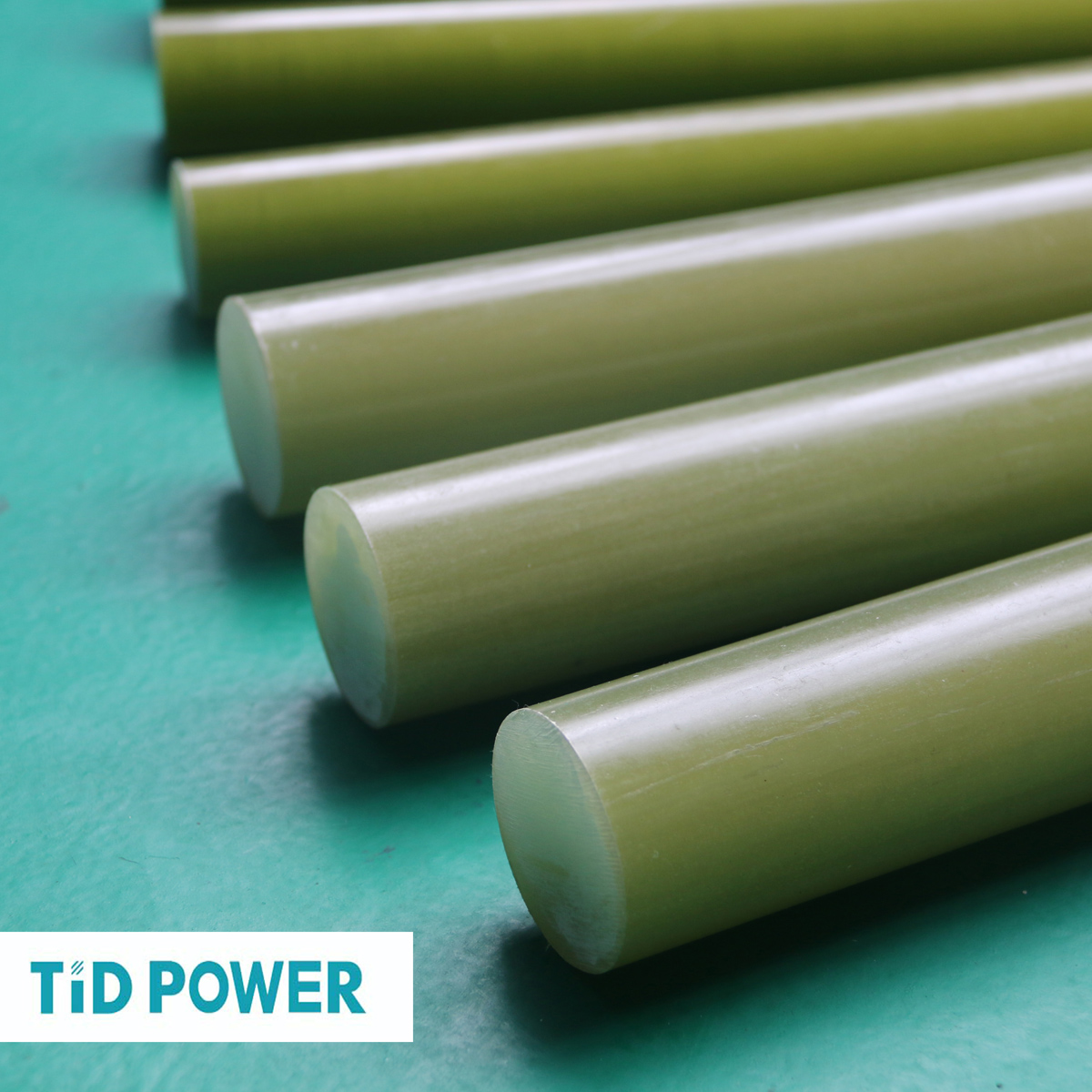

Fiberglass rod is a rod-shaped product made of glass fiber
reinforced material, which has the following characteristics:
1 High strength: Glass fiber rods have high tensile and bending
strength, and compared to traditional metal rods, glass fiber rods
can provide higher strength under the same weight.
2. Lightweight: Compared to metal bars, fiberglass bars have a
lower density, making them lightweight and suitable for
applications with high weight requirements.
3. Corrosion resistance: Glass fiber rods have good corrosion
resistance to most chemicals and can be used in harsh environments,
making them less susceptible to corrosion and oxidation.
4. Insulation performance: Glass fiber rod is an excellent
insulation material that can effectively isolate current and heat,
and has good electrical insulation and thermal insulation
performance.
5. High temperature resistance: Glass fiber rods can maintain
structural stability and physical properties in high-temperature
environments, with high temperature resistance typically reaching
hundreds of degrees Celsius.
6. Long service life: Glass fiber rods have good durability and
fatigue resistance, are not easy to break or deform, and have a
long service life.
7. Easy to process: Glass fiber rods can be processed and shaped
through cutting, drilling, grinding, and other methods, adapting to
various complex design requirements.
2.Technical Parameters:
| No. | Technical specification | Unit | value |
| 1 | Density(20℃±2℃) | g/cm3 | ≥2.2 |
| 2 | Water absorption rate (20℃±2℃,24h) | % | ≤0.05 |
| 3 | Tensile strength | Mpa | ≥1200 |
| 4 | Bending strength | Mpa | ≥960 |
| 5 | Dye penetrated test | Min | ≥15 |
| 6 | Water diffusion test (1%NaCl, 100h 12kv/1min) | mA | ≤0.1 |
| 7 | Shearing strength along laminas | Mpa | ≥50 |
| 8 | Volume resistivity (140℃,96h) | Ω.M | ≥1010 |
| 9 | DC withstand voltage (10mm) | Kv | ≥50 |
| 10 | Lighting impulsed withstand voltage (100kv,10mm) | Times | ≥5 |
| 11 | Bending strength at heating conditions | Mpa/150℃ | ≥350 |
| 12 | Torsion strength | Mpa | ≥800 |
| 13 | Stress corrosion (1mol/1HNO3,at 67%stress) | h | 96 |
3. More detail information for customized epoxy resin fiberglass
rod for composite insulator fuse cut out surge arrester
1 - Continuous roll of reinforced fibers/woven fiber mat
2 - Tension roller
3 - Resin Impregnator
4 - Resin soaked fiber
5 - Die and heat source
6 - Pull mechanism
7 - Finished hardened fiber reinforced polymer
Products Size
| 产品编号Products Code | D(mm) | L (mm) | 参考重量Weight (kg) | 产品编号Products Code | D(mm) | L (mm) | 参考重量Weight (kg) |
| TECR00400 | Φ4 | 1000 | 0.028 | TECR03600 | φ36 | 1000 | 2.20 |
| TECR00450 | Φ4.5 | 1000 | 0.035 | TECR03800 | φ38 | 1000 | 2.46 |
| TECR00500 | Φ5 | 1000 | 0.05 | TECR04000 | φ40 | 1000 | 2.70 |
| TECR00550 | Φ5.5 | 1000 | 0.052 | TECR04100 | φ41 | 1000 | 2.84 |
| TECR00800 | Φ8 | 1000 | 0.11 | TECR04200 | Φ42 | 1000 | 2.99 |
| TECR01000 | Φ10 | 1000 | 0.17 | TECR04500 | φ45 | 1000 | 3.42 |
| TECR01200 | Φ12 | 1000 | 0.25 | TECR05000 | φ50 | 1000 | 4.28 |
| TECR01600 | φ16 | 1000 | 0.44 | TECR05300 | φ53 | 1000 | 4.75 |
| TECR01670 | Φ16.7 | 1000 | 0.49 | TECR05500 | φ55 | 1000 | 5.12 |
| TECR01748 | Φ17.48 | 1000 | 0.53 | TECR06000 | φ60 | 1000 | 6.10 |
| TECR01800 | φ18 | 1000 | 0.55 | TECR06350 | Φ63.5 | 1000 | 6.97 |
| TECR02000 | φ20 | 1000 | 0.69 | TECR06800 | φ68 | 1000 | 7.96 |
| TECR02200 | φ22 | 1000 | 0.83 | TECR07000 | φ70 | 1000 | 8.44 |
| TECR02400 | φ24 | 1000 | 0.99 | TECR07620 | Φ76.2 | 1000 | 10.15 |
| TECR02500 | φ25 | 1000 | 1.07 | TECR08000 | φ80 | 1000 | 10.90 |
| TECR02600 | φ26 | 1000 | 1.14 | TECR09000 | φ90 | 1000 | 14.24 |
| TECR02800 | φ28 | 1000 | 1.47 | TECR11000 | φ110 | 1000 | 21.36 |
| TECR03000 | φ30 | 1000 | 1.53 | TECR12000 | Φ120 | 1000 | 24.87 |
| TECR03200 | φ32 | 1000 | 1.76 | TECR13000 | Φ130 | 1000 | 29.65 |
| TECR03400 | φ34 | 1000 | 1.97 | | | | |
4. Packing and Shipping:
Insulator Fittings/ Fiberglass Rod/ Rubber Packaging and Shipping:
Insulator Fittings: Packaged in cardboard boxes, wrapped in plastic
wrap and secured with tape.
Fiberglass Rod: Wrapped in plastic bubble wrap and placed in
cardboard boxes.
Rubber: Placed in cardboard boxes lined with plastic wrap.
All items will be shipped via UPS or other courier services.
