    Composite Insulator Epoxy Resin Fiberglass Rod Epoxy Resin Fiberglass Pole Surge Arrester

    Ask Lasest Price
    Brand Name : TID POWER
    Model Number : TECR
    Certification : ISO9001:2008
    Price : Negotiate
    Payment Terms : L/C , T/T
    • Product Details
    • Company Profile

    Composite Insulator Epoxy Resin Fiberglass Rod Epoxy Resin Fiberglass Pole Surge Arrester

    High quanlity Epoxy Resin Fiberglass pole For Composite Insulator Fuse Cut Out Surge Arrester


    Product:


    1.Product Description of high quanlity epoxy resin fiberglass pole for composite insulator fuse cut out surge arrester

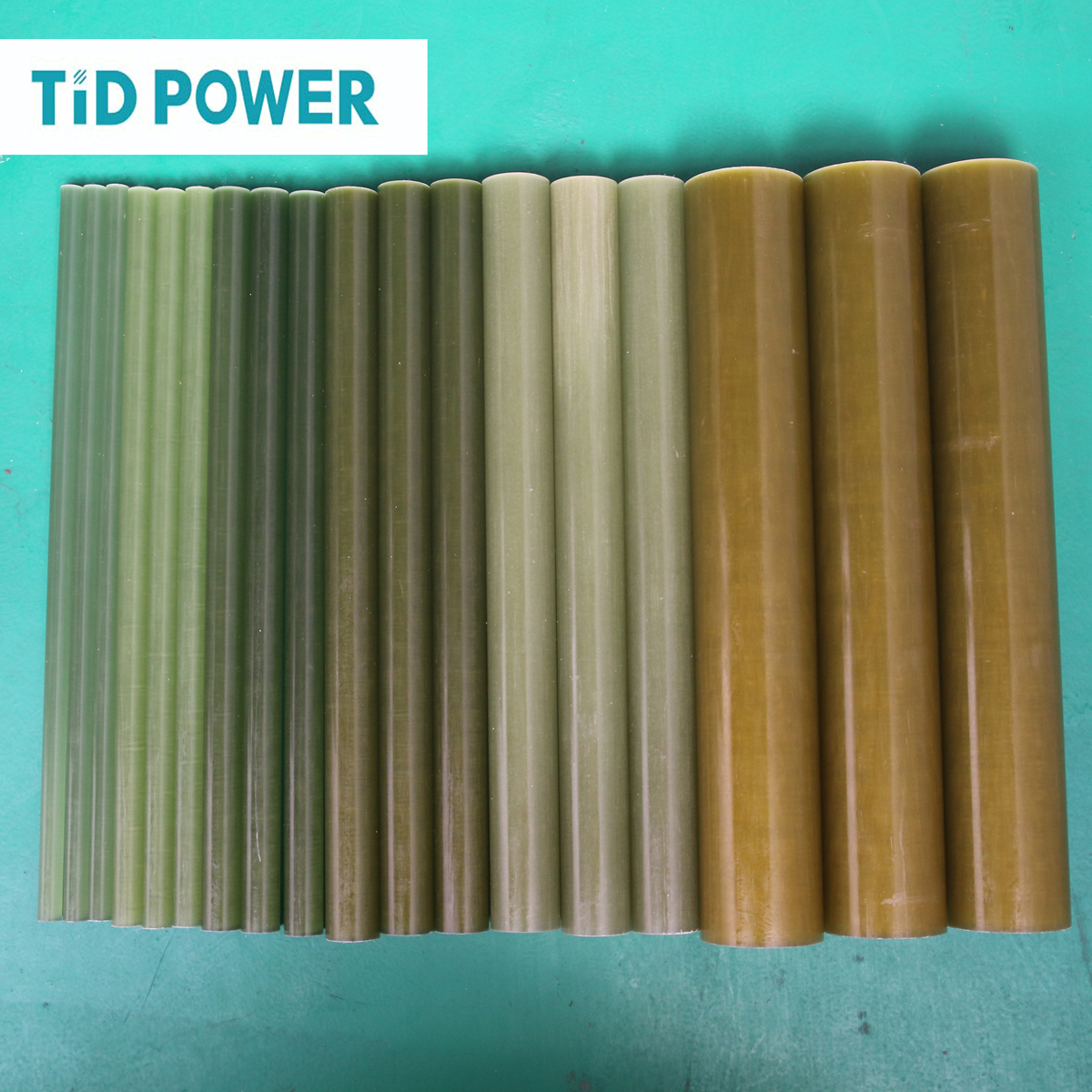

    Fiberglass rod is a long strip of material made of glass fiber. It is usually composed of slender bundles of glass fibers or ropes, which are bundled together to form a sturdy rod-shaped structure. Glass fiber rods have many advantages, including high strength, lightweight, and corrosion resistance


    The products made of glass fiber rods have good corrosion resistance and electromagnetic shielding performance, which can provide reliable cable protection.

    2. Technical Parameters of high quanlity epoxy resin fiberglass pole for composite insulator fuse cut out surge arrester:


    No.Technical specificationUnitvalue
    1Density(20℃±2℃)g/cm3≥2.2
    2Water absorption rate (20℃±2℃,24h)%≤0.05
    3Tensile strengthMpa≥1200
    4Bending strengthMpa≥960
    5Dye penetrated testMin≥15
    6Water diffusion test (1%NaCl, 100h 12kv/1min)mA≤0.1
    7Shearing strength along laminasMpa≥50
    8Volume resistivity (140℃,96h)Ω.M≥1010
    9DC withstand voltage (10mm)Kv≥50
    10Lighting impulsed withstand voltage (100kv,10mm)Times≥5
    11Bending strength at heating conditionsMpa/150℃≥350
    12Torsion strengthMpa≥800
    13Stress corrosion (1mol/1HNO3,at 67%stress)h96

    3. More detail information for high quanlity epoxy resin fiberglass pole for composite insulator fuse cut out surge arrester,



    Support and Services:

    We provide technical support and services for Insulator Fittings/ Fiberglass Rod/ Rubber. Our technical support team can answer any questions you may have about these products. They can provide advice on installation, troubleshooting, and maintenance. We also offer a warranty on all our products. If any of our products fail due to manufacturing defects, we will replace them free of charge. Finally, we are always available to answer any additional questions you may have.

    Packing and Shipping:

    Insulator Fittings/ Fiberglass Rod/ Rubber Packaging and Shipping:

    • Insulator Fittings: Packaged in cardboard boxes, wrapped in plastic wrap and secured with tape.
    • Fiberglass Rod: Wrapped in plastic bubble wrap and placed in cardboard boxes.
    • Rubber: Placed in cardboard boxes lined with plastic wrap.

    All items will be shipped via UPS or other courier services.
