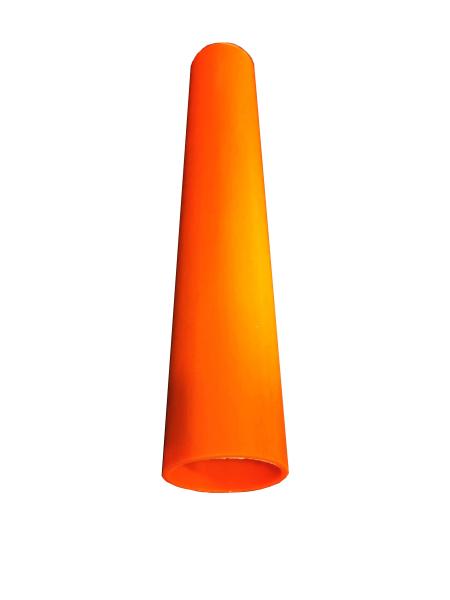

Electrical Insulation with Epoxy Fiberglass Tube

Customization of Electrical Insulation Epoxy Fiberglass Tube :

High Strength Epoxy Resin Fiberglass Cross Knitting+ Pultrusion Insulation Tube was widely used for the live line tools and other insulation parts which need the better electrical performance and light weight.

1.Standard:GB13398, IEC 60855
2.Material:Fiber glass and epoxy resin.
3.Process:Continuous knittingfiberglass + pultrusion.process

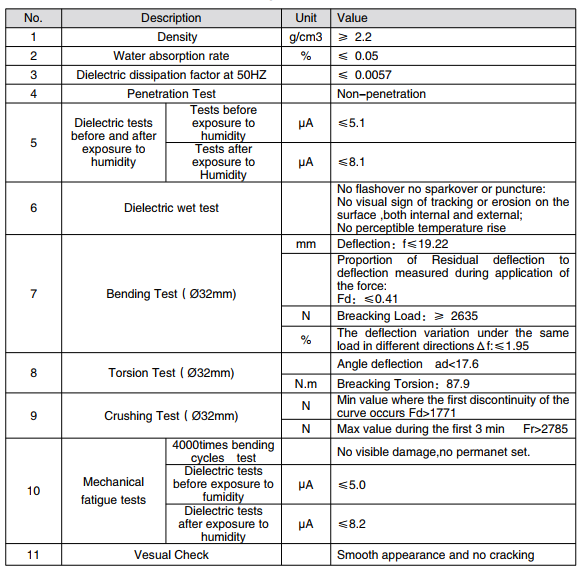

Main Specification

Electrical Insulation Epoxy Fiberglass Tube ​ Products Size

Brand Name: TID POWER
Model Number: TEHT
Place of Origin: CN;SHA
Certification: ISO9001:2008
Minimum Order Quantity: 50.0 Meter/Meters
Packaging Details: Suitable packing for export; 1.Inside packing: a plastic bag or woven belt 2.Outside packing: carton box and pallet. 3.According customer requirement.
Payment Terms: L/C Western Union D/P D/A T/T MoneyGram
Diameter: 16mm-80mm
Material: Epoxy Resin Fiberglass
Sample: Freely Supplied
Process: Knitting Pultrusion;
Density: ≥2.0g/cm3
Application: Used for live line tools

TID POWER provides custom Epoxy Fiberglass Tube with reliable performance and excellent service. Our Epoxy Fiberglass Tube is made of high quality epoxy resin and fiberglass, with a diameter range of 16mm-80mm. The epoxy fiberglass pipe is designed for use as tools for live line work. Our epoxy fiberglass tube has a density of ≥2.2g/cm3 and it is available for free sample and customization.

TID Power,who located in Weinan City where near the high voltage transmission and distribution products center of Xi’an city,Shaanxi provience ,was founded in 1998.We are professional and experienced in manufacture insulators and live line tools for power line and railways.

TID Power products include insulating rod, insulating tube, foam filled insulating tube, fiberglass insulation hot sticks ,insulation ladders ,Insulation platform and other insulation tools , earthing set ,fittings and overhead line automatic splice. We also accept customized products.

TID Power attach great importance to technical innovation , we are glad to developed new products with our customer.The specialized patent products include foam filled fiberglass tube for live line tool , GRP rod for railway catenary system.

TID Power is ISO 9001 qualified company. In order to ensure the quality, TID Power well supervised the raw material, the process and the finished products. TID Power make the main raw material of the products by ourselves ,so we can control the raw material quality well.We have our own laboratory which was built according to IEC standard .TID Power always take the products quality as the life of the company.

TID Power products have already supplied to more than 45 countries and regions.include America ,Russia,Germany,

Switzerland,Span, French , Chile ,Vietnam , Indonesia and so on.

We will continual offer our big effort to support you to win in the market! your satisfied is our ultimate aim!

Our ultimate aim is to support you to win in the market !
