3.2 M-15.2 M Fully Insulated Scaffolding
Product
The characteristic of 3.2 M-15.2 M Fully Insulated Scaffolding
1. The overall structure adopts a modular combination design, which is simple and fast to construct and disassemble;
2. The components are standard and can be disassembled and assembled without the use of any tools, simple and convenient;
3. The combination is diverse and can adapt to any venue environment, and can be customized according to customer requirements;
4. The material is made of lightweight high-strength fiberglass tube, which is maintenance free for 15 years;
5. The product complies with GB17620-1998 "General Technical Conditions for Insulated Hard Ladders for Live Working" and has passed the testing of national authoritative departments. The user's response to use is good.

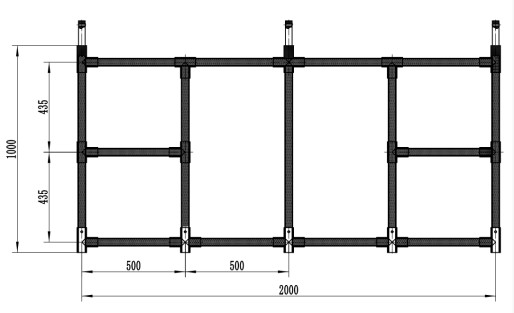

The main structure of the fully insulated scaffold (platform) is a high-strength insulating tube made of fiberglass and epoxy resin (EP). It is built by a ladder frame, a horizontal connecting rod and a diagonal connecting rod, and a support rod plus an insulating platform board. The insulating scaffold (platform) is quick to build, easy to disassemble and assemble, without any installation tools, and convenient to use. It has high mechanical strength, Excellent insulation performance, high flexibility, safety and stability, fast disassembly and assembly, non-conductive, anti oxidation, corrosion resistance, non-sparking, etc. It is suitable for a variety of live construction sites and high-altitude live operations. It makes up for the inability of insulated bucket trucks to enter the site Insufficient construction.
3.2 M-15.2 M Fully Insulated Scaffolding
Straight Ladder Full Insulated Scaffolding size
| No. | Products Code | L (M) | W(M) | Stand Height M | Total Height M | Load Capacity kg |
| 1 | 221022 | 1.8 | 0.85 | 2.2 | 3.2 | 200 |
| 2 | 221027 | 1.8 | 0.85 | 2.7 | 3.7 | 200 |
| 3 | 221032 | 1.8 | 0.85 | 3.2 | 4.2 | 200 |
| 4 | 221037 | 1.8 | 0.85 | 3.7 | 4.7 | 200 |
| 5 | 221042 | 1.8 | 0.85 | 4.2 | 5.2 | 200 |
| 6 | 221047 | 1.8 | 0.85 | 4.7 | 5.7 | 200 |
| 7 | 221052 | 1.8 | 0.85 | 5.2 | 6.2 | 200 |
| 8 | 221057 | 1.8 | 0.85 | 5.7 | 6.7 | 200 |
| 9 | 221062 | 1.8 | 0.85 | 6.2 | 7.2 | 200 |
| 10 | 221067 | 1.8 | 0.85 | 6.7 | 7.7 | 200 |
| 11 | 221072 | 1.8 | 0.85 | 7.2 | 8.2 | 200 |
| 12 | 221077 | 1.8 | 0.85 | 7.7 | 8.7 | 200 |
| 13 | 221082 | 1.8 | 0.85 | 8.2 | 9.2 | 200 |
| 14 | 221087 | 1.8 | 0.85 | 8.7 | 9.7 | 200 |
| 15 | 221092 | 1.8 | 0.85 | 9.2 | 10.2 | 200 |
| 18 | 222022 | 2.5 | 0.85 | 2.2 | 3.2 | 200 |
| 19 | 222027 | 2.5 | 0.85 | 2.7 | 3.7 | 200 |
| 20 | 222032 | 2.5 | 0.85 | 3.2 | 4.2 | 200 |
| 22 | 222037 | 2.5 | 0.85 | 3.7 | 4.7 | 200 |
| 23 | 222042 | 2.5 | 0.85 | 4.2 | 5.2 | 200 |
| 23 | 222047 | 2.5 | 0.85 | 4.7 | 5.7 | 200 |
| 24 | 222052 | 2.5 | 0.85 | 5.2 | 6.2 | 200 |
| 25 | 222057 | 2.5 | 0.85 | 5.7 | 6.7 | 200 |
| 26 | 222062 | 2.5 | 0.85 | 6.2 | 7.2 | 200 |
| 27 | 222067 | 2.5 | 0.85 | 6.7 | 7.7 | 200 |
| 28 | 222072 | 2.5 | 0.85 | 7.2 | 8.2 | 200 |
| 29 | 222077 | 2.5 | 0.85 | 7.7 | 8.7 | 200 |
| 30 | 222082 | 2.5 | 0.85 | 8.2 | 9.2 | 200 |
| 31 | 222087 | 2.5 | 0.85 | 8.7 | 9.7 | 200 |
| 32 | 222092 | 2.5 | 0.85 | 9.2 | 10.2 | 200 |
| 33 | 222097 | 2.5 | 0.85 | 9.7 | 10.7 | 200 |
| 34 | 222102 | 2.5 | 0.85 | 10.2 | 11.2 | 200 |
Straight Ladder Full Insulated Scaffolding size
| No. | Products Code | L (M) | W(M) | Stand Height M | Total Height M | Load Capacity kg |
| 1 | 223027 | 1.8 | 1.45 | 2.7 | 3.7 | 200 |
| 2 | 223032 | 1.8 | 1.45 | 3.2 | 4.2 | 200 |
| 3 | 223037 | 1.8 | 1.45 | 3.7 | 4.7 | 200 |
| 4 | 223042 | 1.8 | 1.45 | 4.2 | 5.2 | 200 |
| 5 | 223047 | 1.8 | 1.45 | 4.7 | 5.7 | 200 |
| 6 | 223052 | 1.8 | 1.45 | 5.2 | 6.2 | 200 |
| 7 | 223057 | 1.8 | 1.45 | 5.7 | 6.7 | 200 |
| 8 | 223062 | 1.8 | 1.45 | 6.2 | 7.2 | 200 |
| 9 | 223067 | 1.8 | 1.45 | 6.7 | 7.7 | 200 |
| 10 | 223072 | 1.8 | 1.45 | 7.2 | 8.2 | 200 |
| 11 | 223077 | 1.8 | 1.45 | 7.7 | 8.7 | 200 |
| 12 | 223082 | 1.8 | 1.45 | 8.2 | 9.2 | 200 |
| 13 | 223087 | 1.8 | 1.45 | 8.7 | 9.7 | 200 |
| 14 | 223092 | 1.8 | 1.45 | 9.2 | 10.2 | 200 |
| 15 | 223097 | 1.8 | 1.45 | 9.7 | 10.7 | 200 |
| 16 | 223102 | 1.8 | 1.45 | 10.2 | 11.2 | 200 |
| 17 | 223107 | 1.8 | 1.45 | 10.7 | 11.7 | 200 |
| 18 | 223112 | 1.8 | 1.45 | 11.2 | 12.2 | 200 |
| 19 | 223117 | 1.8 | 1.45 | 11.7 | 12.7 | 200 |
| 20 | 224027 | 2.5 | 1.45 | 2.7 | 3.7 | 200 |
| 22 | 224032 | 2.5 | 1.45 | 3.2 | 4.2 | 200 |
| 23 | 224037 | 2.5 | 1.45 | 3.7 | 4.7 | 200 |
| 23 | 224042 | 2.5 | 1.45 | 4.2 | 5.2 | 200 |
| 24 | 224047 | 2.5 | 1.45 | 4.7 | 5.7 | 200 |
| 25 | 224052 | 2.5 | 1.45 | 5.2 | 6.2 | 200 |
| 26 | 224057 | 2.5 | 1.45 | 5.7 | 6.7 | 200 |
| 27 | 224062 | 2.5 | 1.45 | 6.2 | 7.2 | 200 |
| 28 | 224067 | 2.5 | 1.45 | 6.7 | 7.7 | 200 |
| 29 | 224072 | 2.5 | 1.45 | 7.2 | 8.2 | 200 |
| 30 | 224077 | 2.5 | 1.45 | 7.7 | 8.7 | 200 |
| 31 | 224082 | 2.5 | 1.45 | 8.2 | 9.2 | 200 |
| 32 | 224087 | 2.5 | 1.45 | 8.7 | 9.7 | 200 |
| 33 | 224092 | 2.5 | 1.45 | 9.2 | 10.2 | 200 |
| 34 | 224097 | 2.5 | 1.45 | 9.7 | 10.7 | 200 |
| 35 | 224102 | 2.5 | 1.45 | 10.2 | 11.2 | 200 |
| 36 | 224107 | 2.5 | 1.45 | 10.7 | 11.7 | 200 |
| 37 | 224112 | 2.5 | 1.45 | 11.2 | 12.2 | 200 |
| 38 | 224117 | 2.5 | 1.45 | 11.7 | 12.7 | 200 |
Cross climbing Ladder Full Insulated Scaffolding
| No. | Products
Code | L (M) | W(M) | Stand Height
M | Total Height
M | Load
Capacity
kg |
| 1 | 225030 | 2.0 | 0.85 | 3 | 4.2 | 200 |
| 2 | 225040 | 2.0 | 0.85 | 4 | 5.2 | 200 |
| 3 | 225050 | 2.0 | 0.85 | 5 | 6.2 | 200 |
| 4 | 225060 | 2.0 | 0.85 | 6 | 7.2 | 200 |
| 5 | 225070 | 2.0 | 0.85 | 7 | 8.2 | 200 |
| 6 | 225080 | 2.0 | 0.85 | 8 | 9.2 | 200 |
| 7 | 226030 | 2.0 | 1.40 | 3 | 4.2 | 200 |
| 8 | 226040 | 2.0 | 1.40 | 4 | 5.2 | 200 |
| 9 | 226050 | 2.0 | 1.40 | 5 | 6.2 | 200 |
| 10 | 226060 | 2.0 | 1.40 | 6 | 7.2 | 200 |
| 11 | 226070 | 2.0 | 1.40 | 7 | 8.2 | 200 |
| 12 | 226080 | 2.0 | 1.40 | 8 | 9.2 | 200 |
| 13 | 226090 | 2.0 | 1.40 | 9 | 10.2 | 200 |
| 14 | 226100 | 2.0 | 1.40 | 10 | 11.2 | 200 |
| 15 | 226110 | 2.0 | 1.40 | 11 | 12.2 | 200 |
| 18 | 226120 | 2.0 | 1.40 | 12 | 13.2 | 200 |
| 19 | 226130 | 2.0 | 1.40 | 13 | 14.2 | 200 |
| 20 | 226140 | 2.0 | 1.40 | 14 | 15.2 | 200 |
FAQ:
1. Are you a manufacturer or a trader?
* We are the manufacturer, 15 years of production experience;
* The factory has passed ROSH, SGS certification;
* Standard :IEC standard;
* Has its own quality control.
2. Do you have any export experience?
* More than 10 years working experience in export.
* Products are exported to Indonesia, Britain, Russia, Ukraine, Qatar, Romania, UAE, Egypt, the United States, Costa Rica, Brazil and other countries.
3. How to choose products?
* Standard products: Please select the standard code according to the above reference documents;
* Custom products: Please tell us
** Special material requirements;
