    Fully Insulated Safety Platform with Orange / Yellow Color

    Ask Lasest Price
    Brand Name : TID POWER
    Model Number : 22****
    Certification : ISO9001
    Price : Negotiate
    Payment Terms : T/T, L/C
    • Product Details
    • Company Profile

    Fully Insulated Safety Platform with Orange / Yellow Color

    Fully Insulated Safety Platform with Orange / Yellow Color

    Product

    1. The characteristic of fully insulated safety insulated platform customized length orange/yellow color

    The main structure of the fully insulated scaffold (platform) is a high-strength insulating tube made of fiberglass and epoxy resin ( EP) . It is built by a ladder frame ,a horizontal connecting rod and a diagonal connecting rod , and a support rod plus an insulating platform board . The insulating scaffold (platform) is quick to build ,easy to disassemble and assemble , without any installation tools , and convenient to use . It has high mechanical strength , Excellent insulation performance , high flexibility , safety and stability , fast disassembly and assembly , non-conductive ,

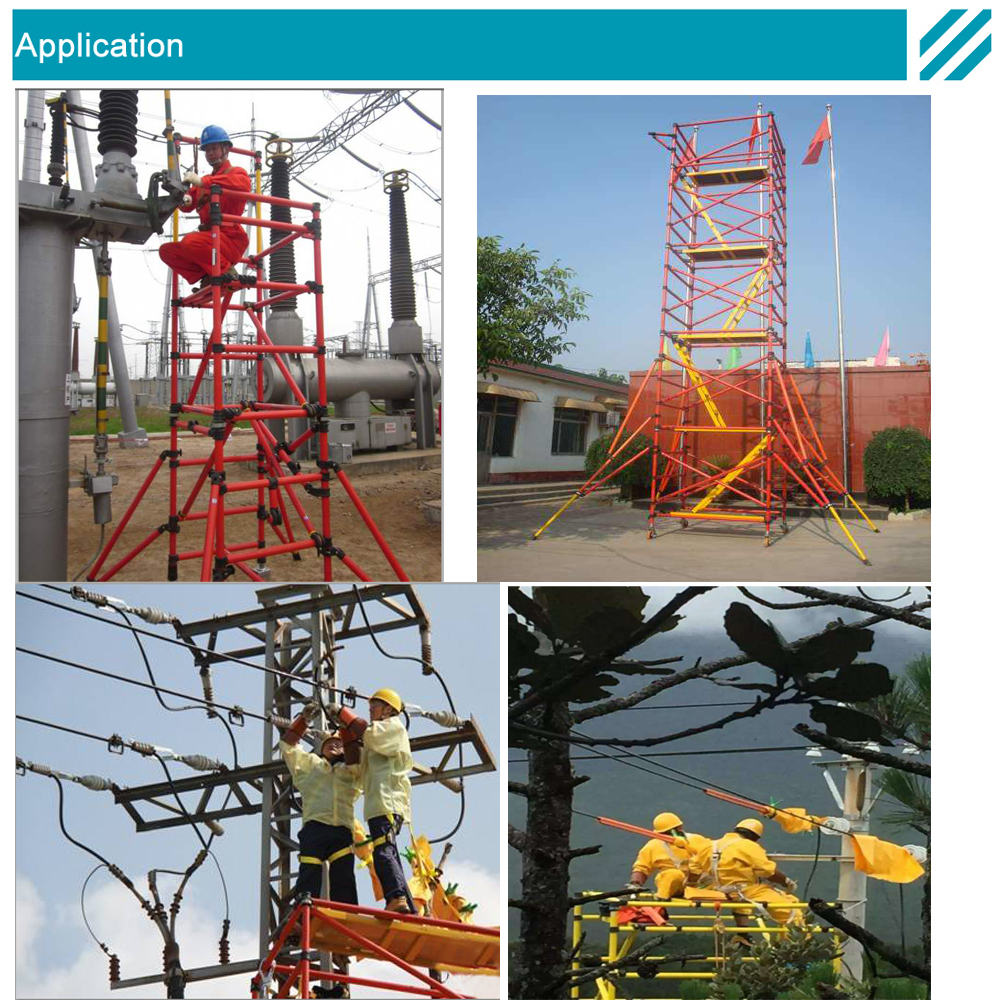

    anti-oxidation , corrosion resistance , non-sparking , etc . It is suitable for a variety of live construction sites and high-altitude live operations . It makes up for the inability of insulated bucket trucks to enter the site Insufficient construction .

    2.Straight Ladder Full Insulated Scaffolding size

    No.

    Products Code

    L (M)

    W(M)

    Stand Height

    M

    Total Height

    M

    Load Capacity

    kg

    1

    221022

    1.8

    0.85

    2.2

    3.2

    200

    2

    221027

    1.8

    0.85

    2.7

    3.7

    200

    3

    221032

    1.8

    0.85

    3.2

    4.2

    200

    4

    221037

    1.8

    0.85

    3.7

    4.7

    200

    5

    221042

    1.8

    0.85

    4.2

    5.2

    200

    6

    221047

    1.8

    0.85

    4.7

    5.7

    200

    7

    221052

    1.8

    0.85

    5.2

    6.2

    200

    8

    221057

    1.8

    0.85

    5.7

    6.7

    200

    9

    221062

    1.8

    0.85

    6.2

    7.2

    200

    10

    221067

    1.8

    0.85

    6.7

    7.7

    200

    11

    221072

    1.8

    0.85

    7.2

    8.2

    200

    12

    221077

    1.8

    0.85

    7.7

    8.7

    200

    13

    221082

    1.8

    0.85

    8.2

    9.2

    200

    14

    221087

    1.8

    0.85

    8.7

    9.7

    200

    15

    221092

    1.8

    0.85

    9.2

    10.2

    200

    18

    222022

    2.5

    0.85

    2.2

    3.2

    200

    19

    222027

    2.5

    0.85

    2.7

    3.7

    200

    20

    222032

    2.5

    0.85

    3.2

    4.2

    200

    22

    222037

    2.5

    0.85

    3.7

    4.7

    200

    23

    222042

    2.5

    0.85

    4.2

    5.2

    200

    23

    222047

    2.5

    0.85

    4.7

    5.7

    200

    24

    222052

    2.5

    0.85

    5.2

    6.2

    200

    25

    222057

    2.5

    0.85

    5.7

    6.7

    200

    26

    222062

    2.5

    0.85

    6.2

    7.2

    200

    27

    222067

    2.5

    0.85

    6.7

    7.7

    200

    28

    222072

    2.5

    0.85

    7.2

    8.2

    200

    29

    222077

    2.5

    0.85

    7.7

    8.7

    200

    30

    222082

    2.5

    0.85

    8.2

    9.2

    200

    31

    222087

    2.5

    0.85

    8.7

    9.7

    200

    32

    222092

    2.5

    0.85

    9.2

    10.2

    200

    33

    222097

    2.5

    0.85

    9.7

    10.7

    200

    34

    222102

    2.5

    0.85

    10.2

    11.2

    200

    No.

    Products Code

    L (M)

    W(M)

    Stand Height

    M

    Total Height

    M

    Load Capacity

    kg

    1

    223027

    1.8

    1.45

    2.7

    3.7

    200

    2

    223032

    1.8

    1.45

    3.2

    4.2

    200

    3

    223037

    1.8

    1.45

    3.7

    4.7

    200

    4

    223042

    1.8

    1.45

    4.2

    5.2

    200

    5

    223047

    1.8

    1.45

    4.7

    5.7

    200

    6

    223052

    1.8

    1.45

    5.2

    6.2

    200

    7

    223057

    1.8

    1.45

    5.7

    6.7

    200

    8

    223062

    1.8

    1.45

    6.2

    7.2

    200

    9

    223067

    1.8

    1.45

    6.7

    7.7

    200

    10

    223072

    1.8

    1.45

    7.2

    8.2

    200

    11

    223077

    1.8

    1.45

    7.7

    8.7

    200

    12

    223082

    1.8

    1.45

    8.2

    9.2

    200

    13

    223087

    1.8

    1.45

    8.7

    9.7

    200

    14

    223092

    1.8

    1.45

    9.2

    10.2

    200

    15

    223097

    1.8

    1.45

    9.7

    10.7

    200

    16

    223102

    1.8

    1.45

    10.2

    11.2

    200

    17

    223107

    1.8

    1.45

    10.7

    11.7

    200

    18

    223112

    1.8

    1.45

    11.2

    12.2

    200

    19

    223117

    1.8

    1.45

    11.7

    12.7

    200

    20

    224027

    2.5

    1.45

    2.7

    3.7

    200

    22

    224032

    2.5

    1.45

    3.2

    4.2

    200

    23

    224037

    2.5

    1.45

    3.7

    4.7

    200

    23

    224042

    2.5

    1.45

    4.2

    5.2

    200

    24

    224047

    2.5

    1.45

    4.7

    5.7

    200

    25

    224052

    2.5

    1.45

    5.2

    6.2

    200

    26

    224057

    2.5

    1.45

    5.7

    6.7

    200

    27

    224062

    2.5

    1.45

    6.2

    7.2

    200

    28

    224067

    2.5

    1.45

    6.7

    7.7

    200

    29

    224072

    2.5

    1.45

    7.2

    8.2

    200

    30

    224077

    2.5

    1.45

    7.7

    8.7

    200

    31

    224082

    2.5

    1.45

    8.2

    9.2

    200

    32

    224087

    2.5

    1.45

    8.7

    9.7

    200

    33

    224092

    2.5

    1.45

    9.2

    10.2

    200

    34

    224097

    2.5

    1.45

    9.7

    10.7

    200

    35

    224102

    2.5

    1.45

    10.2

    11.2

    200

    36

    224107

    2.5

    1.45

    10.7

    11.7

    200

    37

    224112

    2.5

    1.45

    11.2

    12.2

    200

    38

    224117

    2.5

    1.45

    11.7

    12.7

    200

    Cross climbing Ladder Full Insulated Scaffolding

    No.

    Products Code

    L (M)

    W(M)

    Stand Height

    M

    Total Height

    M

    Load Capacity

    kg

    1

    225030

    2.0

    0.85

    3

    4.2

    200

    2

    225040

    2.0

    0.85

    4

    5.2

    200

    3

    225050

    2.0

    0.85

    5

    6.2

    200

    4

    225060

    2.0

    0.85

    6

    7.2

    200

    5

    225070

    2.0

    0.85

    7

    8.2

    200

    6

    225080

    2.0

    0.85

    8

    9.2

    200

    7

    226030

    2.0

    1.40

    3

    4.2

    200

    8

    226040

    2.0

    1.40

    4

    5.2

    200

    9

    226050

    2.0

    1.40

    5

    6.2

    200

    10

    226060

    2.0

    1.40

    6

    7.2

    200

    11

    226070

    2.0

    1.40

    7

    8.2

    200

    12

    226080

    2.0

    1.40

    8

    9.2

    200

    13

    226090

    2.0

    1.40

    9

    10.2

    200

    14

    226100

    2.0

    1.40

    10

    11.2

    200

    15

    226110

    2.0

    1.40

    11

    12.2

    200

    18

    226120

    2.0

    1.40

    12

    13.2

    200

    19

    226130

    2.0

    1.40

    13

    14.2

    200

    20

    226140

    2.0

    1.40

    14

    15.2

    200

    Fully Insulated Safety Platform with Orange / Yellow Color

    FAQ:

    1. Are you a manufacturer or a trader?
    * We are the manufacturer, 15 years of production experience;
    * The factory has passed ROSH, SGS certification;
    * Standard :IEC standard;
    * Has its own quality control.
    2. Do you have any export experience?
    * More than 10 years working experience in export.
    * Products are exported to Indonesia, Britain, Russia, Ukraine, Qatar, Romania, UAE, Egypt, the United States, Costa Rica, Brazil and other countries.
    3. How to choose products?
    * Standard products: Please select the standard code according to the above reference documents;
    * Custom products: Please tell us
    ** Special material requirements;



    Choose us, we will provide you with a full range of technical services!
    We warmly welcome you to join us!
    We are eager to maintain permanent cooperation with you!
