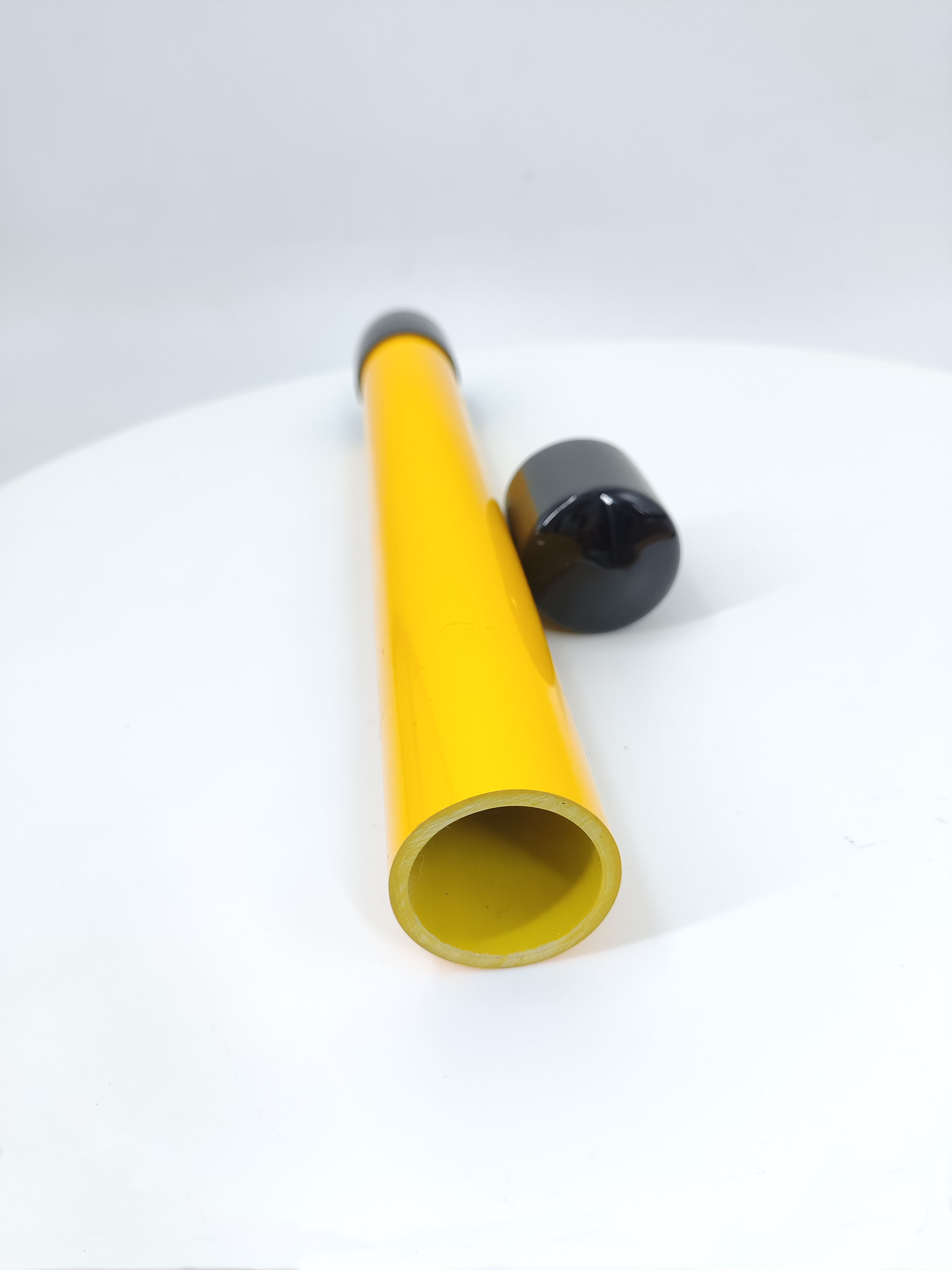

Hot Line Tools Knitting and Pultrusion Epoxy Fiberglass Pipe /
Epoxy Fiberglass Tube
Product
1.The feature of Hot Line Tools Knitting and Pultrusion Epoxy
Fiberglass Pipe / Epoxy Fiberglass Tube
Fiberglass is widely used in today's society. As a material with
good insulation performance, glass fiber is more widely used in
electrical equipment, and due to its good plasticity, it is
suitable for many electrical equipment. There are many components
in transformers, and many components need to be covered with
insulation material on the outer layer. Therefore, glass fiber is a
good insulation material, Its application in the power industry is
more extensive
No. | Description | Unit | Value |
1 | Density | g/cm3 | ≥ 2.2 |
2. | Water absorption rate | % | ≤ 0.05 |
3 | Dielectric dissipation factor at 50HZ |
| ≤ 0.0057 |
4 | Penetration Test |
| Non-penetration |
5 | Dielectric tests before and after exposure to humidity | Tests before exposure to humidity | µA | ≤5.1 |
Tests after exposure to Humidity | µA | ≤8.1 |
6 | Dielectric wet test |
| No flashover no sparkover or puncture: No visual sign of tracking or erosion on the surface ,both internal
and external; No perceptible temperature rise |
7 | Bending Test(Ø32mm) | mm | Deflection:f≤19.22 |
| Proportion of Residual deflection to deflection measured during
application of the force: Fd:≤0.41 |
N | Breacking Load:≥ 2635 |
% | The deflection variation under the same load in different
directionsΔf:≤1.95 |
8 | Torsion Test(Ø32mm) |
| Angle deflection ad<17.6 |
N.m | Breacking Torsion:87.9 |
9 | Crushing Test(Ø32mm) | N | Min value where the first discontinuity of the curve occurs
Fd>1771 |
N | Max value during the first 3 min Fr>2785 |
10 | Mechanical fatigue tests | 4000times bending cycles test |
| No visible damage,no permanet set. |
Dielectric tests before exposure to fumidity | µA | ≤5.0 |
Dielectric tests after exposure to humidity | µA | ≤8.2 |
11 | Vesual Check |
| Smooth appearance and no cracking |
2 More application of Hot Line Tools Knitting and Pultrusion Epoxy
Fiberglass Pipe / Epoxy Fiberglass Tube
Fiberglass insulation tube is a material used for insulation
protection of power equipment, mainly used for insulation
protection of power equipment and cables. The material of glass
fiber insulation sleeve is usually composed of glass fiber and
special resin, which has good heat resistance and insulation
performance.
In power equipment, cables and wires are very important components
that require insulation protection to prevent risks such as current
leakage and electric shock. Glass fiber insulated sleeves can be
used for insulation protection of cables and wires, effectively
preventing current leakage and electric shock and other hazards.
FAQ:
1.Is your company a manufacturer or a trader?
* We are the manufacture, 15 years production experience;
* our factory has passed ROSH, SGS, etc;
* Standard: IEC standard;
* Have own quanlity control.
2.Do you have export experience?
* More than 10 years export experience.
*TID products have been exported to Indonesia, Britain, Russia,
Ukraine, Qatar, Romania, UAE, Egypt, USA, Costa rica ,Brazil etc.
3.Delivery time?
*Samples: 3-7 days; order: 30 days or according to the order
quantity.
4.Do you accept OEM/ODM?
* Yes, we have several customer ask OEM/ODM, we'll do what you tell
us!
