    Gray Silicone Rubber Composite Insulator for Transmission Line

    Ask Lasest Price
    Brand Name : TID POWER
    Model Number : FXBW
    Certification : ISO9001:2008
    Price : Negotiate
    Payment Terms : T/T, L/C
    • Product Details
    • Company Profile

    Gray Silicone Rubber Composite Insulator for Transmission Line

    Gray Silicone Rubber Composite Insulator for Transmission Line


    Product:

    1.Product Description of Gray Silicone Rubber Composite Insulator for Transmission Line

    Overhead Line Polymer Insulator is made of high-quality silicone rubber, which is durable and reliable. It has a high withstand voltage, and can provide good electrical insulation. It is also resistant to ultraviolet rays, so it won't fade or degrade overtime. The size of the product can be customized according to customer's needs. Moreover, it is flame retardant and has a grey color, making it the perfect choice for overhead line applications.

    Note:

    1. Applied standard:IEC61109.

    2. Please select the fitting type when you order,The insulator info in the table belowbased on the type with ball & socket fittings.The section length maybe a little changed when change the fitting type, the insulator exactly drawing and detail info you need,please contact with our sales.

    3. We suggest that you chose the arcing ring when the insulator above 132kV.


    TypeRated Voltage (KV)

    SML

    (KN)

    Section

    Length H(mm)

    Min Arcing

    Distance

    h(mm)

    Min Nominal

    Creepage Distance L(mm)

    Lightning Impulse Withstand Voltage (KV)Power Frequency with stand voltage (KV)
    FXBW-69/706970680±104951440390185
    FXBW-69/12069120860±156502100415235
    FXBW-132/70132701360±3011503600740320
    FXBW-132/1201321201400±3011503600740320
    FXBW-132/1601321601430±3011504800740440
    FXBW-132/2101322101470±3011504800740440
    FXBW-132/2401322401470±3011504800740440
    FXBW-220/70220702280±30205068201050460
    FXBW-220/1202201202310±30205068201050460
    FXBW-220/1602201602350±30205096001050460
    FXBW-220/2102202102390±30205096001050460
    FXBW-220/2402202402390±30205096001050460
    FXBW-400/1204001203680±303420123001480625
    FXBW-400/1604001603745±303420130601480625
    FXBW-400/2104002103785±303420130601480625
    FXBW-400/2404002403785±303420130601480625
    FXBW-500/1205001204760±304500162001900900
    FXBW-500/1605001604820±304500155001900900
    FXBW-500/2105002104860±304500155001900900
    FXBW-500/2405002404860±304500155001900900

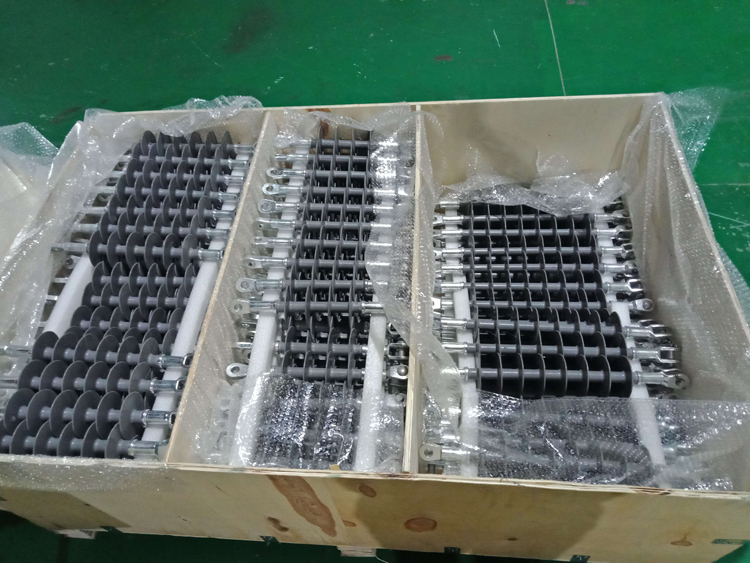

    Packaging and Shipping of Overhead Line Polymer Insulator:

    The Overhead Line Polymer Insulator should be packaged in a safe and secure manner so as to not be damaged during shipment. The package should be able to withstand the elements, such as rain or snow, as well as the vibration of the transport vehicle. The package should also be able to protect the insulator from any other outside forces that could potentially damage it. Once the package is sealed, it should be labeled with the correct address and contact information of the recipient.

    The Overhead Line Polymer Insulator should be shipped on a reliable and secure transport vehicle, such as a truck or aircraft. The package should be placed on the transport vehicle carefully and securely, ensuring that it will not be damaged during transit. Once the package has been loaded onto the transport vehicle, it should be tracked throughout its journey to ensure it arrives safely and on time at its destination.
