Polymer Overhead Line Insulator For Dead End/Suspension Insulator 69kV -400kV

Ask Lasest Price
Brand Name :	TID POWER
Model Number :	FXBW
Certification :	ISO9001:2008
Price :	Negotiate
Payment Terms :	T/T, L/C

Add to Cart

Product Details
Company Profile

Polymer Overhead Line Insulator For Dead End/Suspension Insulator 69kV -400kV

Polymer Overhead Line Insulator For Dead End/Suspension Insulator 69kV -400kV

Product:

1.Product Description of Polymer Overhead Line Insulator For Dead End/Suspension Insulator 69kV -400kV
Overhead Line Polymer Insulator is made of high-quality silicone rubber, which is durable and reliable. It has a high withstand voltage, and can provide good electrical insulation. It is also resistant to ultraviolet rays, so it won't fade or degrade overtime. The composite insulators are cmposited of FRP rod,silicone rubber shed and metal fitting.We use the complete injection technology to solve the problem of interface electric puncture which highly affect the reliability of composite insulator.

2.Produc performance of Polymer Overhead Line Insulator For Dead End/Suspension Insulator 69kV -400kV
1. High mechanical strength.

2. Good performance of hydrophobicity and anti-pollution

3. Excellent electrical specification

4. Small volume and light weight

3. Product Details of Polymer Overhead Line Insulator For Dead End/Suspension Insulator 69kV -400kV

Note:

1. Applied standard:IEC61109.

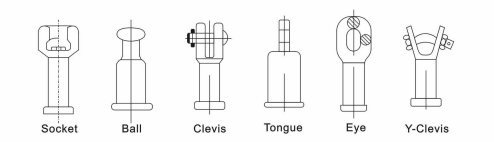

2. Please select the fitting type when you order,The insulator info in the table belowbased on the type with ball & socket fittings.The section length maybe a little changed when change the fitting type, the insulator exactly drawing and detail info you need,please contact with our sales.

3. We suggest that you chose the arcing ring when the insulator above 132kV.

Type	Rated Voltage (KV)	SML (KN)	Section Length H(mm)	Min Arcing Distance h(mm)	Min Nominal Creepage Distance L(mm)	Lightning Impulse Withstand Voltage (KV)	Power Frequency with stand voltage (KV)
FXBW-69/70	69	70	680±10	495	1440	390	185
FXBW-69/120	69	120	860±15	650	2100	415	235
FXBW-132/70	132	70	1360±30	1150	3600	740	320
FXBW-132/120	132	120	1400±30	1150	3600	740	320
FXBW-132/160	132	160	1430±30	1150	4800	740	440
FXBW-132/210	132	210	1470±30	1150	4800	740	440
FXBW-132/240	132	240	1470±30	1150	4800	740	440
FXBW-220/70	220	70	2280±30	2050	6820	1050	460
FXBW-220/120	220	120	2310±30	2050	6820	1050	460
FXBW-220/160	220	160	2350±30	2050	9600	1050	460
FXBW-220/210	220	210	2390±30	2050	9600	1050	460
FXBW-220/240	220	240	2390±30	2050	9600	1050	460
FXBW-400/120	400	120	3680±30	3420	12300	1480	625
FXBW-400/160	400	160	3745±30	3420	13060	1480	625
FXBW-400/210	400	210	3785±30	3420	13060	1480	625
FXBW-400/240	400	240	3785±30	3420	13060	1480	625
FXBW-500/120	500	120	4760±30	4500	16200	1900	900
FXBW-500/160	500	160	4820±30	4500	15500	1900	900
FXBW-500/210	500	210	4860±30	4500	15500	1900	900
FXBW-500/240	500	240	4860±30	4500	15500	1900	900

FAQ:

1. Are you a manufacturer or a trader?
* We are the manufacturer, 15 years of production experience;
* The factory has passed ROSH, SGS certification;
* Standard :IEC standard;
* Has its own quality control.
2. Do you have any export experience?
* More than 10 years working experience in export.
* Products are exported to Indonesia, Britain, Russia, Ukraine, Qatar, Romania, UAE, Egypt, the United States, Costa Rica, Brazil and other countries.
3. How to choose products?
* Standard products: Please select the standard code according to the above reference documents;
* Custom products: Please tell us
** Special material requirements; ** Fitting model and mark; * * voltage;
** Tensile or bending strength; ** creepage distance or pollution level;
** Structural height or electrical performance.
4. Production capacity?
* 216000 units per year.

Choose us, we will provide you with a full range of technical services!
We warmly welcome you to join us!
We are eager to maintain permanent cooperation with you!
