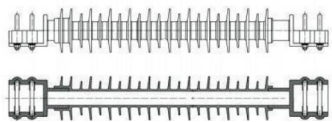

Railway Silicone Rubber Cross Arm Insulator 25 KV
Product:
Characteristics of Railway Silicone Rubber Cross Arm Insulator 25
KV
Insulators are devices installed between conductors of different
potentials or between conductors and grounding components that can
withstand voltage and mechanical stress. They mainly consist of two
parts: insulation components and connecting hardware.
The cantilever rod composite insulator product is a combination of
porcelain and composite materials, solving the problem of porcelain
component fracture caused by the dispersion of porcelain materials
Due to the silicone rubber material being a polymer material,
composite insulators are prone to aging, short service life, arc
resistance, and electric leakage resistance under comprehensive
erosion such as wind, frost, acid rain, fog, ice, sunlight,
ultraviolet radiation, and electric field. The product has stable
mechanical properties and permanent aging resistance.
Products Code | Volage (kV) | SML (kN) | Bendng Stengh (kN) | Secton Length (mm) | Acng Distance (mm) | Creepag Distance (mm) | Wet Power Fequency Witstand Votage (kV) | Lightning impused Withstand Voltage (kV) | Tongue Fitting Eye Sze mm) | U Fitting Size (mm) |
| T2503 | 25 | 64 | 1700 | 630 | 452 | 1200 | 95 | 250 | 18 | 28 |
| T2504 | 25 | 64 | 1700 | 630 | 452 | 1200 | 95 | 250 | 18 | 49 |
| T2505 | 25 | 64 | 1700 | 630 | 452 | 1200 | 95 | 250 | 18 | 55 |
| T2506 | 25 | 64 | 1700 | 630 | 452 | 1200 | 95 | 250 | 18 | 55-70 |
FAQ
1. Are you a manufacturer or a trader?
* We are the manufacturer, 15 years of production experience;
* The factory has passed ROSH, SGS certification;
* Standard :IEC standard;
* Has its own quality control.
2. Do you have any export experience?
* More than 10 years working experience in export.
* Products are exported to Indonesia, Britain, Russia, Ukraine,
Qatar, Romania, UAE, Egypt, the United States, Costa Rica, Brazil
and other countries.
3. How to choose products?
* Standard products: Please select the standard code according to
the above reference documents;
* Custom products: Please tell us
** Special material requirements; ** Fitting model and mark; * *
voltage;
** Tensile or bending strength; ** creepage distance or pollution
level;
** Structural height or electrical performance.
4. Production capacity?
* 216,000 units per year.
