    3KV/25KV Composite Rubber Railway Insulator

    Ask Lasest Price
    Brand Name : TID POWER
    Model Number : T0308 -T0310, T2508 - T2511
    Certification : TEST REPORT/ISO9001
    Price : Negotiate
    Delivery Time : According to the quantity
    Payment Terms : T/T, L/C
    Supply Ability : 18000 Piece/Pieces / Month
    • Product Details
    • Company Profile

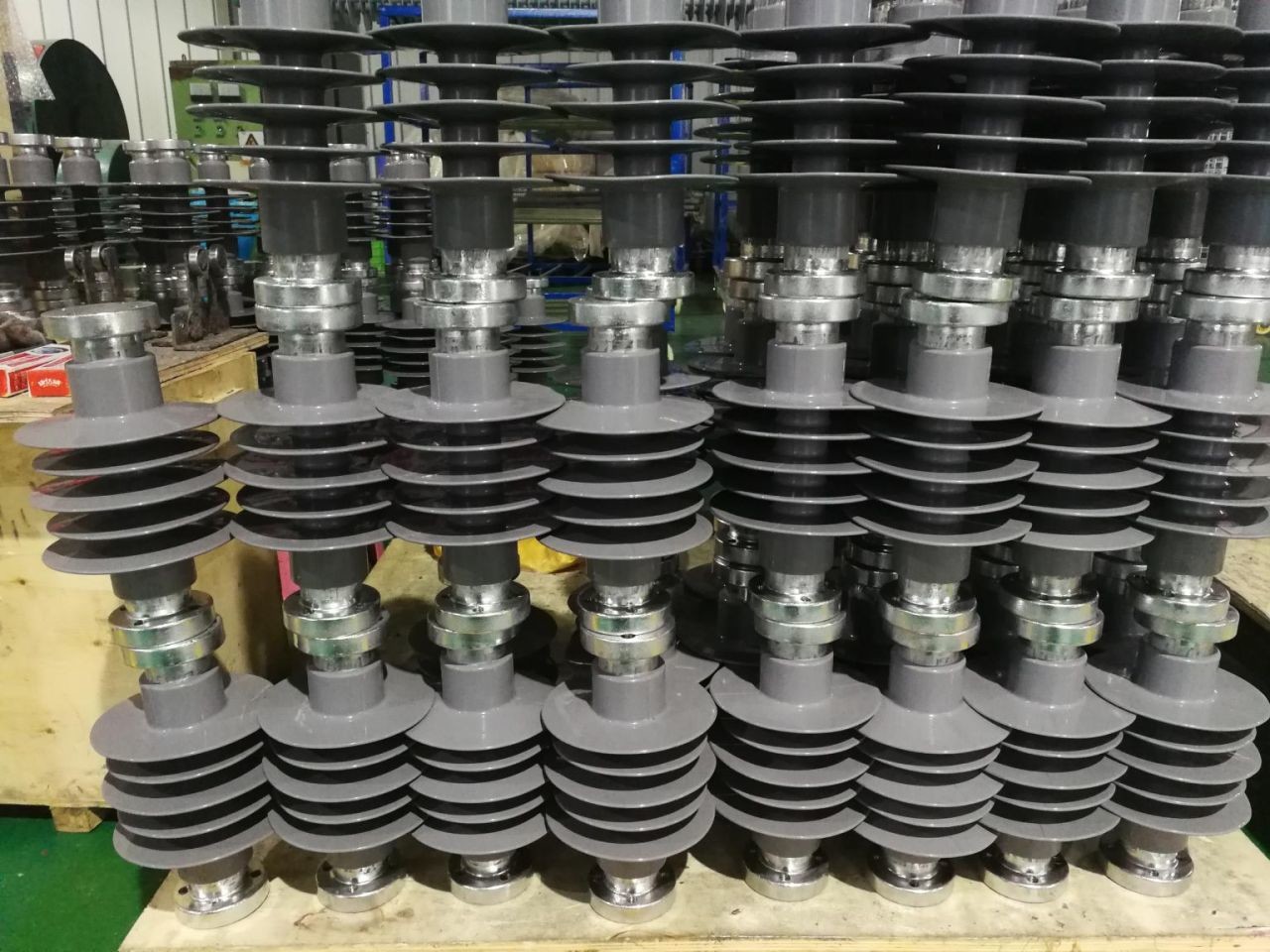

    3KV/25KV Composite Rubber Railway Insulator

    3KV/25KV Composite Rubber Railway Insulator


    Product Description of 3KV/25KV Composite Rubber Railway Insulator
    Railway Silicone Rubber Insulator is made of highly durable silicone rubber, fiberglass rod and insulator fittings, which provide superior weather and heat resistance, and high tear strength.

    This composite railway insulator is designed for railway applications, and can effectively ensure electrically insulated from the ground.


    3KV/25KV Composite Rubber Railway Insulator


    Parameter of Railway Silicone Rubber Insulator

    Products CodeVoltage (KV)

    SML

    (kN)

    Bending

    Strength

    (kN)

    Section Length (mm)

    Arcing

    Distance

    (mm)

    Creepage

    Distance

    (mm)

    Wet Power

    Frequency

    Withstand

    Voltage(kV)

    Lightning impulsed

    Withstand

    Voltage(kV)

    Top Flange (mm)Bottom Flange (mm)
    T03083209245±117030015954-M18 Φ127*Φ1624-M18 Φ127*Φ162
    T0309122020156±1212450531504-M12 Φ152*Φ1084-M12 Φ152*Φ108
    T0310125012.5253±1190420401104-M12 Φ76*Φ1004-M12 Φ76*Φ100
    T250825508315±2270750751704-M18 Φ140*Φ1744-M18 Φ140*Φ174
    T250825508400±23301000851854-M18 Φ140*Φ1744-M18 Φ140*Φ174
    T250925605534±54001200952504-M11 Φ127*Φ1624-M11 Φ127*Φ162
    T251025608495±545013001252504-M18 Φ127*Φ1624-M18 Φ127*Φ162
    T251125605514±54001200952504-M11 Φ127*Φ1624-M11 Φ127*Φ162

    FAQ:

    Q&A for Railway Silicone Rubber Insulator

    Q1: What is the Brand Name of Railway Silicone Rubber Insulator?
    A1: The Brand Name of Railway Silicone Rubber Insulator is TID POWER.
    Q2: What is the Model Number of Railway Silicone Rubber Insulator?
    A2: The Model Number of Railway Silicone Rubber Insulator is T0308 -T0310, T2508 - T2511.
    Q3: Where is Railway Silicone Rubber Insulator from?
    A3: Railway Silicone Rubber Insulator is from China.
    Q4: What is the Minimum Order Quantity of Railway Silicone Rubber Insulator?
    A4: The Minimum Order Quantity of Railway Silicone Rubber Insulator is 100.0 Piece.
    Q5: What kind of Payment Terms do you accept for Railway Silicone Rubber Insulator?
    A5: We accept L/C, T/T for Railway Silicone Rubber Insulator.
