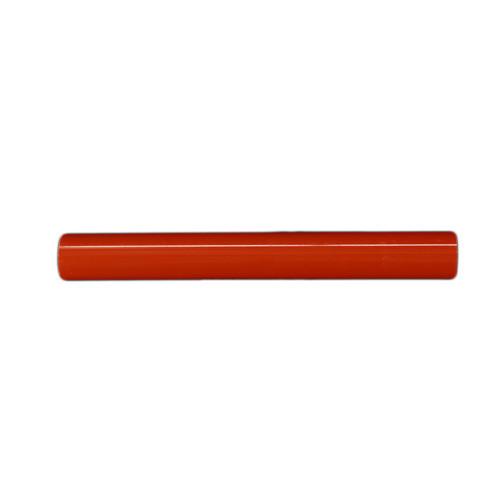

GRP Tramway Tube Of Catenary / GRP Products For Railway And Tramway
Product
The feature of GRP Tramway Tube Of Catenary / GRP Products For Railway And
Tramway
Catenary GRP (Glass Reinforced Plastic) products are a type of
composite material made from a combination of fine glass fibers and
a polyme resin matrix, typically polyester or vinyl ester. They are commonly
used in various industries for their high strength-to-weight ratio,
corrosion resistance, and durability.
1.Material: GF-EP ,UV Resistance;
2.Environment Temperature:-50 ℃ to +80 ℃;
3 Technical Character:
| No. | Descnption of of Character | Value |
| 1 | Density | ≥2.1g/cm3 |
| 2 | Fiberglass Content | ≥78% |
| 3 | Water Absorption | ≤0.5% |
| 4 | Ambient temperature | -50°C to+80°C |
| 5 | Tensile Strength | ≥550N/mm² |
| 6 | Bending Strength | ≥550N/mm² |
| 7 | Compressive Strength | ≥400N/mm² |
| 8 | Elastic modulus | ≥40000N/mm² |
| 9 | Coefficient of linear thermal expansion(1/℃) | 10×10-6 |
2.Dimension:
| No. | Diameter (mm) | Tolerance (mm) | Weight (kg/m) | Color |
| 1 | Tube φ14×φ16 | ±0.20 | 0.10 | Orange, Grey,Olive or customized |
| 2 | Tube φ24×φ38 | ±0.20 | 1.40 | Orange, Grey,Olive or customized |
| 3 | Tube φ40×φ55 | ±0.20 | 2.35 | Orange, Grey,Olive or customized |
| 4 | We accept customized diameter ,length and colour |
The application of GRP Tramway Tube Of Catenary / GRP Products For Railway And
Tramway
FAQ:
1. Are you a manufacturer or a trader?
* We are a manufacturer, with 15 years of production experience;
* Our factory has passed ROSH, SGS certification;
* Standard: IEC standard;
* Has its own quality control.
2. Do you have any export experience?
* More than 10 years of export experience.
*TID products have been exported to Indonesia, the United Kingdom,
Russia, Ukraine, Qatar, Romania, UAE, Egypt, the United States,
Costa
Rica, Brazil and other countries.
3. How to choose products?
* Standard products: Please select the standard code according to
the above reference documents;
* Custom products: Please tell us
** Special material requirements
