Function

High-voltage AC current measurement, low-voltage AC current, online AC current monitoring

power supply

DC6V alkaline dry battery (1 .5V AAA ×4)

test method

Non-contact U CT

transfer method

433MHz wireless transmission, the transmission distance is about 100 meters

Display mode

4-digit LCD display, backlight function, suitable for dim places

LCD size

47mm ×28 .5mm

Instrument size

Detector: width 107mm × height 252mm × thickness 31mm; receiver: width 78mm ×height 212mm ×thickness 41mm

Jaw size

φ68mm

Insulation rod size

φ45mm, closed state 1150mm, extended state 5000mm .

Insulating rod voltage level

110KV

Sampling rate

2 times/sec

Measuring range

0 .00A ~ 9999A (50/60Hz automatic)

Resolution

0 .01A

Shift

0 .00A ~ 9999A fully automatic gear shift

Test accuracy

±2% ±5dgt (The wire is located near the center of the bottom of the U-shaped jaw, 23℃±2℃)

Position error

The wire under test should be as close as possible to the center of the bottom end of the U-shaped jaw

data storage

99 groups, the "MEM" symbol indicates during the storage process, and the flashing display of the "FULL" symbol indicates that the storage is full

Line voltage

Test of bare wires below 60kV (operation with insulating rod, fully extended telescopic insulating rod)

Data retention

In the normal test mode, press the HOLD key to keep the data, the "HOLD" symbol is displayed, and then press the HOLD key to cancel

Data access

The "MR" symbol indicates that the stored data can be flipped up and down

Overflow display

Over-range overflow function: "OL A" symbol display

No signal indication

When the receiver does not receive the transmitted signal, the "no- -" symbol is displayed dynamically

Automatic shut-down

About 15 minutes after power on, the meter will automatically shut down to reduce battery consumption

battery voltage

When the battery voltage is lower than 4 .8V, the receiver will display the low battery voltage symbol "", reminding to replace the battery

Instrument quality

Detector: 235g (including battery), receiver: 280g (including battery, total mass

of the meter: 2300g (including insulating rod and battery)

Working temperature and humidity

- 10℃ ~ 40℃; below 80%Rh

Disturb

Try to avoid 315MHz, 433MHz co-frequency signal interference

Dielectric strength

AC 220kV/rms (the telescopic insulating rod is fully opened, between the two ends)

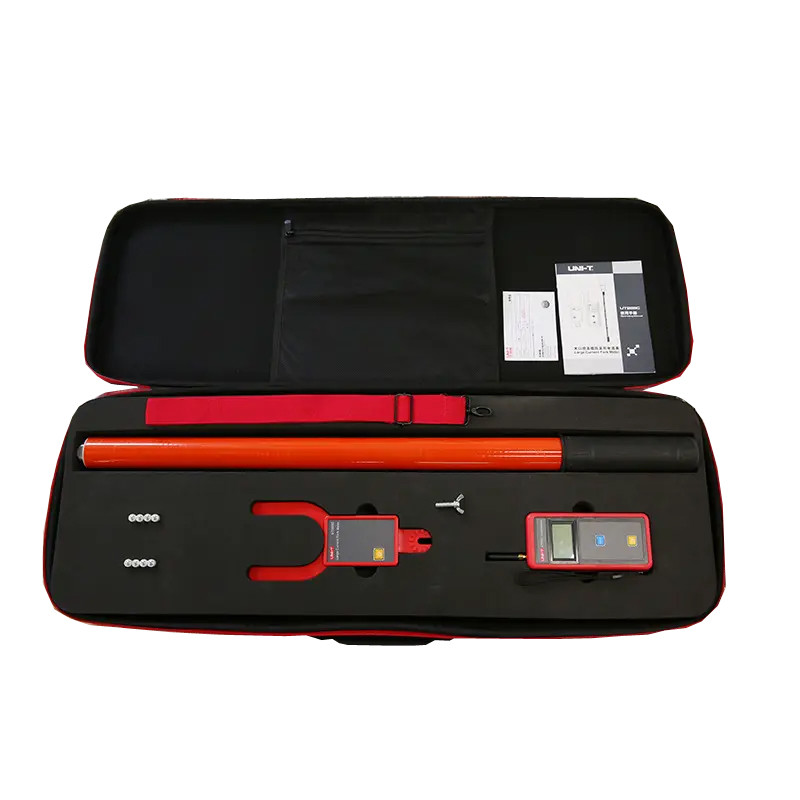

Random accessories

Clamp meter: 1 piece; receiver: 1 piece; telescopic insulating rod: 1 piece;

battery LR03: 8 pieces; cloth bag: 1 piece
