Flange End Fitting for Post Insulator

Ask Lasest Price
Brand Name :	TID POWER
Model Number :	F
Certification :	ISO9001:2008
Price :	Negotiate
Payment Terms :	T/T, L/C

Add to Cart

Product Details
Company Profile

Flange End Fitting for Post Insulator

Standard Insulator Fittings Flange base for Post Composite Insulator

Product Description of Standard Insulator Fittings Flange base for Post Composite Insulator:

Insulator Fittings are made from high-quality materials, such as fiberglass rods, rubber, and galvanized steel threads, to ensure maximum durability and performance. The thickness and length of the fittings can be customized according to the customer’s requirements. All of our insulator fittings are designed to be highly resistant to harsh weather conditions and offer superior protection and reliability.

Post Insulator End Fitting

1.Applied Standard:IEC62231,ISO1461

2.Material: HDG steel.

3.Surface treatment: HDG with zinc thickness higher than 86 μm.

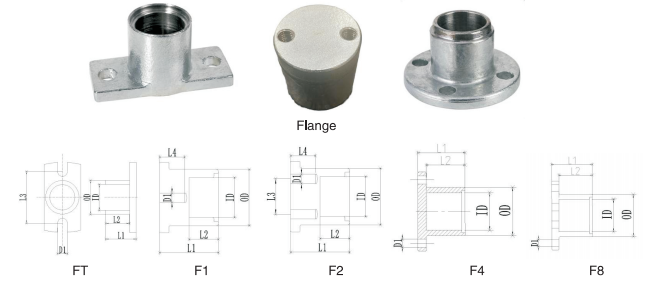

No.	Products Code	Type	L1 (mm)	L2 (mm)	OD (mm)	ID (mm)	D1 (mm)	L3 (mm)
1	FT-2-U14.5-76-38-001	FT	45	35	50	38	2-U14.5	76
2	F1-M12-/-32-001	F1	51	29	48	32	M12*16	/
3	F1-M12-/-70-001	F1	65	40	86	70	M16*18	/
1	F2AL-M10-26-26-001	F2-Al	60	40	37	26	2-M10*14	26
2	F2-M10-30-34-001	F2	50	25	48	34	2-M10*22	30
3	F2-M8-29-34-001	F2	40	27	40	34	2-M8*8	28
4	F2-M8-29-36-001	F2	56.5	36	50	36	2-M8*16	29
5	F2-M8-29-45-001	F2	57	37	58	45	2-M8*16	29
1	F4-M38-57-32-001	F4	52	40	48	32	4-M3/8*16	57
2	F4-M12-76-32-001	F4	42.5	34	50	32	4-M12*10	76
3	F4-Φ13-76-32-001	F4	50	40	48	32	4-Φ13*15	76
4	F4-Φ13-76-34-001	F4	70	60	48	34	4-Φ13*10	127
5	F4-M12-76-34-001	F4	42.5	34	50	34	4-M12*10	76
6	F4-Φ13-127-34-001	F4	46	34	48	34	4-Φ13*10	76
7	F4-Φ11-76-32-001	F4	62	50	52	36	4-Φ11*12	127
8	F4-Φ13-76-38-001	F4	66	56	54	38	4-Φ13*10	76
9	F4-Φ13.5-76-45-001	F4	42	32	54	38	4-Φ13.5*10	76
10	F4-Φ10-76-45-001	F4	42.5	32.5	55	45	4-Φ10*10	76
11	F4-Φ10-76-45-002	F4	60	48	55	45	4-Φ10*12	76
12	F4-Φ10-76-45-003	F4	57	47	58	45	4-Φ10*10	76
13	F4-Φ18-127-45-001	F4	60	51	63	45	4-Φ18*10	127
14	F4-Φ12-76-50-001	F4	65	50	63	50	4-Φ12*10	76
15	F4-Φ18-127-68-001	F4	100	85	90	68	4-Φ18*20	127
16	F4-Φ18-127-70-001	F4	65	53	90	70	4-182815	127
17	F4-Φ18-127-70-002	F4	110	95	90	70	4-Φ18*15	127
18	F4-M12-140-70-001	F4	76	65	90	70	4-M12*20	140
19	F4-M12-152-70-001	F4	55	40	90	70	4-M12*15	152
20	F4-M16-127-80-001	F4	90	75	100	80	4-M16*15	127
1	F8-Φ18-254-80-001	F8	120	100	100	80	8-Φ18*20	254
