    Polymer Station Post Insulators

    Ask Lasest Price
    Brand Name : TID POWER
    Model Number : T / FZ
    Certification : ISO9001
    Price : Negotiate
    Payment Terms : T/T, L/C
    • Product Details
    • Company Profile

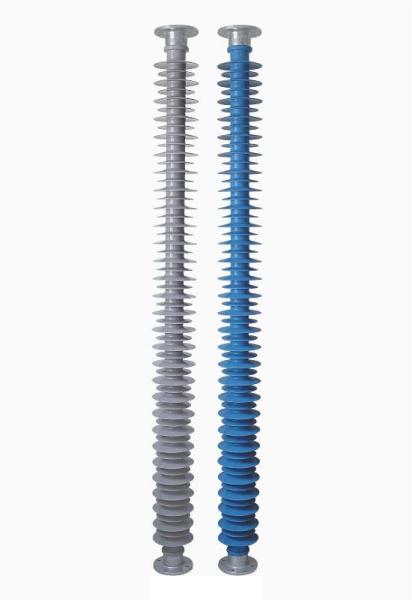

    Polymer Station Post Insulators

    Polymer Station Post Insulators


    Product:

    1.Product Description of Polymer Station Post Insulators
    The composite insulator product consists of three parts: glass fiber epoxy resin pull rod, silicone rubber umbrella skirt, and hardware. The silicone rubber umbrella skirt adopts an integral injection pressure process, thereby solving the key problem of interface electrical breakdown that affects the reliability of composite insulators. The connection between the glass pulling rod and the metal fittings adopts the most advanced crimping process, equipped with a fully automatic acoustic flaw detection system, which has high strength, beautiful appearance, small volume, light weight, galvanized metal fittings can prevent rust and corrosion, and can be interchanged with porcelain insulators. The structure is reliable, does not damage the core rod, and can fully exert its mechanical strength.


    2.Product performance of Polymer Station Post Insulators
    -High mechanical strength.
    -Good performance of hydrophobicity and anti-pollution
    -Excellent electrical specification
    -Small volume and light weight

    3. Product Details of Polymer Station Post Insulators

    Products Code

    Voltage

    (kV)

    SML(kN)

    Bending

    Strength

    (kN)

    Section Length

    (mm)

    Arcing Distance

    (mm)

    Creepage Distance

    (mm)

    Wet Power Frequency Withstand

    Voltage(kV)

    Lightning Impulsed Withstand

    Voltage(kV)

    Top Flange

    (mm)

    Bottom

    flange

    (mm)

    T03083209245±11703001595

    4 -M18

    Φ127*Φ162

    4 -M18

    Φ127*Φ162

    T0309122020156±121245053150

    Torx Flange

    4 -M12

    Φ152*108

    Torx Flange

    4 -M12

    Φ152*108

    T0310125012.5253±119042040110

    4-M12

    Φ76*Φ100

    4-M12

    Φ76*Φ100

    T250825508315±227075075170

    4-M18

    Φ140*Φ174

    4-M18

    Φ140*Φ174

    T250825508400±2330100085185

    4-M18

    Φ140*Φ174

    4-M18

    Φ140*Φ174

    T250925605534±5400120095250

    4 -M11

    Φ127*Φ162

    4 -M11

    Φ162*Φ127

    T251025608495±54501300125250

    4 -M18

    Φ127*Φ162

    4 -M18

    Φ127*Φ162

    T251125605514±5400120095250

    4 -M11

    Φ127*Φ162

    4 -M11

    Φ162*Φ127

    FZ-36/12.5365012.5445±5340103595200

    4 -Φ10

    Φ76*Φ100

    4 -Φ10

    Φ76*Φ100

    FZ-66/10665010760±56201480160370

    4 -Φ18

    Φ127*Φ170

    4 -Φ18

    Φ127*Φ170

    FZ-132/1013250101220±51000270230550

    4 -Φ18

    Φ127*Φ170

    4 -Φ18

    Φ127*Φ170

    FZ-132/1213250121360±51220320276720

    4 -Φ18

    Φ140*Φ180

    4 -Φ18

    Φ140*Φ180

    Note:

    1.Applied standard:IEC62231.


    FAQ:


    1. Are you a manufacturer or a trader?
    * We are the manufacturer, 15 years of production experience;
    * The factory has passed ROSH, SGS certification;
    * Standard :IEC standard;
    * Has its own quality control.
    2. Do you have any export experience?
    * More than 10 years working experience in export.
    * Products are exported to Indonesia, Britain, Russia, Ukraine, Qatar, Romania, UAE, Egypt, the United States, Costa Rica, Brazil and other countries.
    3. How to choose products?
    * Standard products: Please select the standard code according to the above reference documents;
    * Custom products: Please tell us
    ** Special material requirements; ** Fitting model and mark; * * voltage;
    ** Tensile or bending strength; ** creepage distance or pollution level;
    ** Structural height or electrical performance.
    4. Production capacity?
    * 216000 units per year.


    Choose us, we will provide you with a full range of technical services!
    We warmly welcome you to join us!
    We are eager to maintain permanent cooperation with you!
