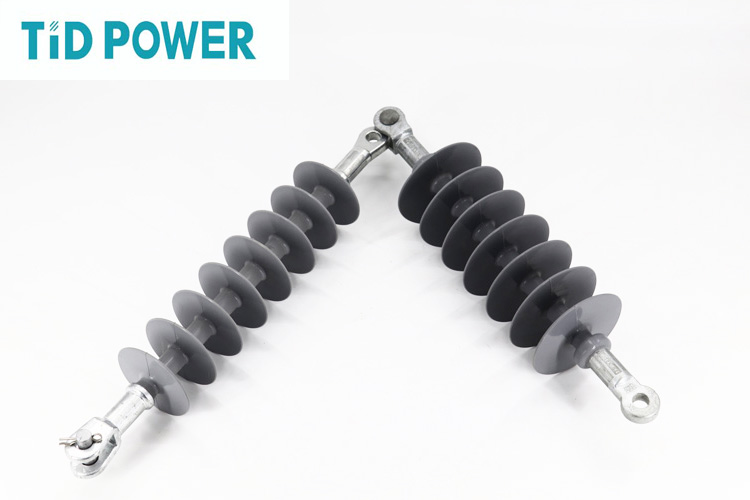

    Distribution Silicone Dead End/Suspension Polymer Insulator for Overhead Lines

    Ask Lasest Price
    Brand Name : TID POWER
    Model Number : FXB / FXBW
    Certification : ISO9001:2008
    Price : Negotiate
    Payment Terms : T/T, L/C
    • Product Details
    • Company Profile

    Distribution Silicone Dead End/Suspension Polymer Insulator for Overhead Lines

    Distribution Silicone Dead End/Suspension Polymer Insulator for Overhead Lines


    Note:

    1. Applied standard:IEC61109.

    2. Please select the fitting type when you order,The insulator info in the table below based on the type with Tongue & Clevis fittings.The section length maybe a little changed when change the fitting type, the insulator exactly drawing and detail info you need,please contact with our sales.

    No.Part No.Rated VoltageTensile LoadSection Length

    Min Arcing

    Distance


    Creepage distancePower Frequency Withstand VoltageLighting Impulse Withstand Voltage
    kVkNmmmmmmDry(kV)Wet(kV)Pos.(kV)
    1FXB-15/701570360±152004009065145
    2FXB-28/702470455±15310620130100190
    3FXB-35/703370550±15400900145130250
    4FXB-35/12033120630±154501230180150310
    5FXB-46/704670600±154501010180150310
    6FXB-46/12046120650±154501010180150310
    7FXB-69/706970745±154951340242185390
    8FXBW-69/12069120860±156502100270235415

    Choose us, we will provide you with a full range of technical services!

    We warmly welcome you to join us!

    We are eager to maintain permanent cooperation with you!
