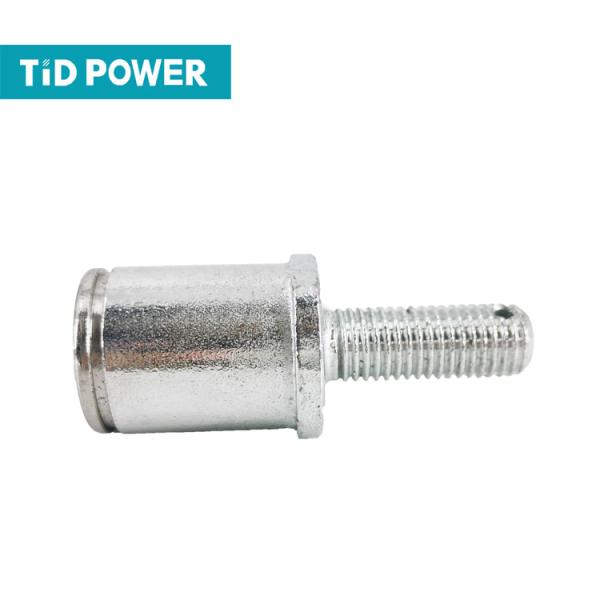

    High Voltage Pin Insulator Fitting

    Ask Lasest Price
    Brand Name : TID POWER
    Model Number : BF
    Certification : ISO9001/CCPIT
    Price : Negotiate
    Payment Terms : T/T, L/C
    • Product Details
    • Company Profile

    High Voltage Pin Insulator Fitting

    High Voltage Pin Insulator Fitting


    Line Post Insulator End Fitting

    1.Applied Standard:IEC61952,ISO1461

    2.Material: HDG steel.

    3.Surface treatment: HDG with zinc thickness higher than 86 μm.

    No.Products CodeType

    L1

    (mm)

    L2

    (mm)

    OD

    (mm)

    ID

    (mm)

    Base diameter

    (mm)

    D1

    (mm)

    1BF1-50-M12-24-001BF17545322450M12*25
    2BF1-56-M24-34-001BF17540483456M24*25
    3BF1-60-M24-34-001BF16532483460M20*25
    4BF1-70-M16-34-001BF16032453470M16*20
    5BF1-75-M20-34-001BF173.540.5483475M16*25
    6BF1-56-M20-36-001BF17540483656M20*25
    7BF1-76-M22-38-001BF18040543876M22*32
    8BF1-110-M24-38-001BF190435738110M24*25
    9BF1-76-M20-40-001BF18034544076M20*25
    10BF1-63-M20-45-001BF17540564563M20*25
    11BF1-90-M20-50-001BF19650645090M20*30
    12BF2-114-M20-34-001BF2101.5494634114M20*32
    13BF2-114-M20-40-001BF2101.5495240114M20*32
    14BF2-113-M20-44-001BF2101.5495644114M20*32
    15BF2-113-M20-45-001BF2108676345113M20*23
    16BF2-113-M20-50-001BF2118606250113M20*30
    17BF2-150-M24-68-001BF2140889068150M24*32

    No.Products CodeType

    L1

    (mm)

    L2

    (mm)

    L3

    (mm)

    OD

    (mm)

    ID(mm)

    Bolt

    S*L4

    (mm)

    1BF3-M10-25-18-001BF35530252918M10*25
    2BF3-M18-80-36-001BF3129149395236M18*80
    3BF3-M22-175-38-001BF322348405038M22*175
    4BF3-M18-80-45-001BF3135471556345M18*80

    No.Products CodeType

    L1

    (mm)

    L3(mm)

    OD

    (mm)

    ID(mm)

    Hole

    Diameter

    (mm)

    Hole distance

    (mm)

    Clevis distance

    (mm)

    1BF4-60-49-68-001BF41599986684-Φ246049
